Preset Policy Updates

"Preset" Policy gives you a way to implement security rule changes fully automatically, without dramatically impacting the structure of the rulebase.

Using Ansible, you can define what constitutes an acceptable, or sanctioned policy request, by mapping incoming requests to specific parameters and then implementing changes based on that policy.

Defining your Security Policy

First, you must consider what counts as a "sanctioned" security rule that you can add without requiring further user input.

Some examples would be:

• Allowing incoming SSH access to a jump server from specific IPs for administrators
• Allowing internet access to external load balancer routed IP addresses
• Allowing communication between users and an internal file server

In these cases, the firewall administrator is not making a security policy decision when the implement new access.

With these high level policies in mind, you must convert them into actionable "filters"

Building a Sanctioned Policy File

Note

This project intentionally does not abstract how the implementation works so that it is easy to customize. This means those that are building the policy will need to be familiar with Ansible concepts as well as Jinja2.

First, define your sanctioned policy in Firewall rule terms. For the rest of this guide we will be using the SSH Jump server access example.

This policy should allow any user requesting access to the jump server IP range from internet IPs.

Note

For this example, just pretend there's NAT in place and forget the destination network is a private IP :)

source network	destination network	requesting user	application
not 10.0.0.0/24	10.10.11.0/24	any	ssh

Now, implement this policy in your Panorama instance. This becomes your "preset" security policy!

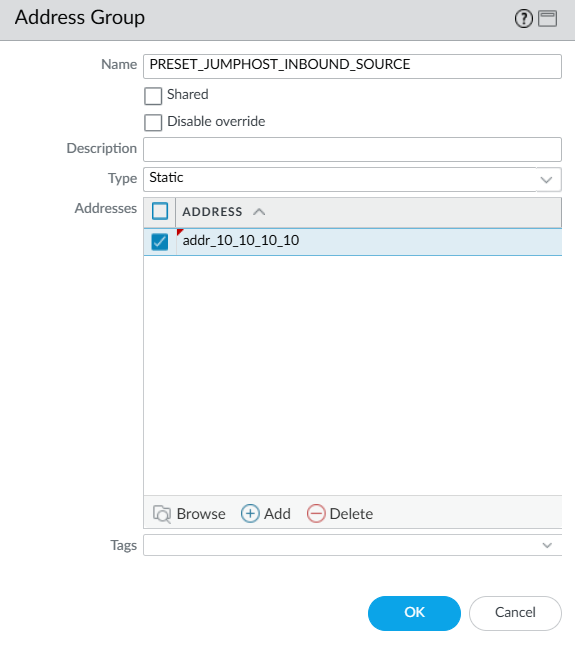

Create an Address Group for the Source

Warning

PAN-OS requires that you specify at least one address when creating a new address group. In our case, we're setting up these groups essentially as placeholders, so you can either use a dummy address or something else logical.

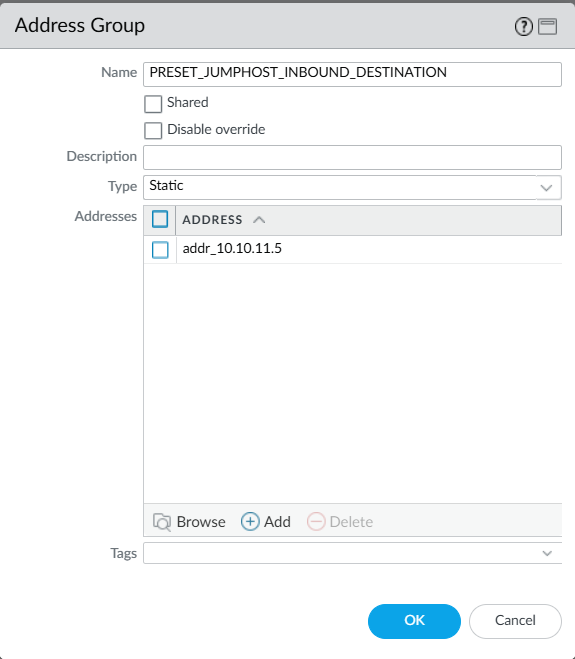

(Optional) Create an Address Group for the Destination

Repeat the above process, but creating an address group for the destination. In our jump server example, you may only have one destination IP, in which case this step is unnessecary. It will become clear later!

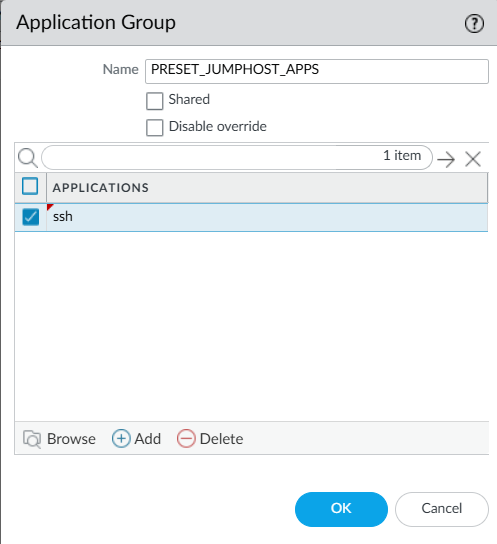

(Optional) Create an Application Group

If you want to allow the automated process to add applications to the preset policy, you can also create an application group. This is usually most useful for user-sourced traffic (for example, users access internet applications like Facebook).

Create the Security Rule

Now you can actually define the rule in your security policy.

Because you are defining most of the parameters, this is the key to building scalable, reliable policy automation. You only need to decide where a rule goes once, you only need to worry about what is or is not permitted once, and then it's repeatable forever (until you change your business requirements, anyway!)

Note that we reference the addresses and the app group in here, but we, as administrators, can decide all of the other parameters. For example, we might restrict the rule to specific zones, or use specific ports, or enforce a certain threat profile group, etc etc.

Mapping incoming requests to Preset policy

Now that the policy has been defined, you can map incoming requests from users to the policy using automation.

Create a Policy Tasks File

We use Ansible tasks and Jinja2 filters to map the policy to automation actions. This is as simple as using set_fact with a when clause. You can make this as complex as you like, Jinja2 offers a huge amount of filters out of the box, and if you need to get more complex you can write your own custom python filters.

To implement our jump server access, we write a tasks file. You can store this anywhere, as it is included dynamically at runtime.

ssh_jumpserver_inbound_access.yml

---
# This is policy allowing users to access the jump server

- name: Match SSH Jumpserver access
  ansible.builtin.set_fact:
    policy_match: true # Set the fact that we did match a policy
    policy_creation_source_address_group: PRESET_JUMPHOST_INBOUND_SOURCE # In this case, the policy preset is an address_group type
    policy_creation_destination_address_group: PRESET_JUMPHOST_INBOUND_DESTINATION # In this case, the policy preset is an address_group type
    lookup_policy_application_group: PRESET_JUMPHOST_APPS # If an application is passed, we should also include it in the policy.
    policy_creation_device_group: Lab # Finally, we set the device group!
  when:
    - policy_creation_source_ip is defined
    - policy_creation_destination_ip is defined
    - "'10.10.11.0/24' | ansible.utils.network_in_network( policy_creation_destination_ip )"
    - "not '10.0.0.0/8' | ansible.utils.network_in_network( policy_creation_source_ip )"

Including the policy

We include and utilize our policy by passing the path via the policy_creation_policy_files variable.

Note that you can include multiple files, and they will be parsed sequentially, or you can have all your policy in the one file - it's up to you!

Creating and running a playbook

example_playbook.yml

---
- hosts: lab # <---- Replace this with your group for Panorama
  connection: local
  gather_facts: false
  name: Deploy security policy

  vars:
    provider:
      ip_address: "{{ ansible_host }}"
      username: "{{ lookup('env', 'ANSIBLE_NET_USERNAME') }}"
      password: "{{ lookup('env', 'ANSIBLE_NET_PASSWORD') }}"
    policy_creation_source_ip: 8.8.8.8
    policy_creation_destination_ip: 10.10.11.5
    lookup_policy_application: ssh
    policy_creation_policy_files:
      - ssh_jumpserver_inbound_access.yml # <---- Replace with the path to your policy file, or files

  roles:
    - paloaltonetworks.panos_policy_automation.policy_creation # Note the included role

  tasks:
    - name: Print the results
      ansible.builtin.debug:
        msg: "{{ lookup_policy_security_policy_match_result }}"

ansible-playbook example_playbook.yml

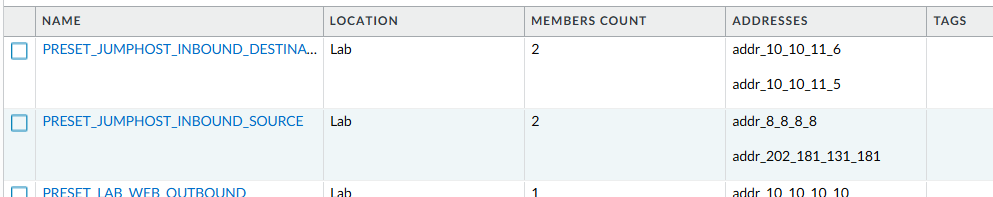

You will see the policy is matched and the relevant address groups updated.

What next?

So, what happens for policies that don't match any preset policies? Proceed to the New Policy Creation guide.
